DM74LS163A Synchronous 4-Bit Binary Counters

📥 Download Datasheet Datasheet Preview Page 1

Description

DM74LS161A * DM74LS163A Synchronous 4-Bit Binary Counters August 1986 Revised April 2000 DM74LS161A * DM74LS163A Synchronous 4-Bit B.
These synchronous, presettable counters feature an internal carry look-ahead for application in high-speed counting designs.

📥 Download Datasheet

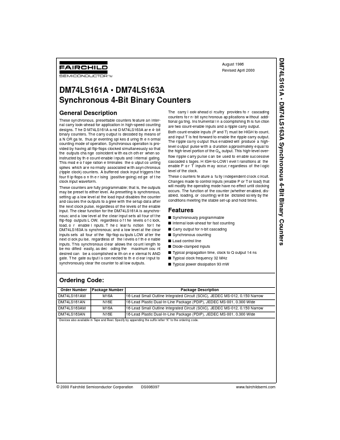

Preview of DM74LS163A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DM74LS163A
Manufacturer
Fairchild Semiconductor
File Size
208.56 KB
Datasheet
DM74LS163A-FairchildSemiconductor.pdf
Description
Synchronous 4-Bit Binary Counters

Features

* s Synchronously programmable s Internal look-ahead for fast counting s Carry output for n-bit cascading s Synchronous counting s Load control line s Diode-clamped inputs s Typical propagation time, clock to Q output 14 ns s Typical clock frequency 32 MHz s Typical power dissipation 93 mW Ordering C
