DM74LS645

Octal Bus Transceiver

DM74LS645 Features

* s Bi-directional bus transceivers in high-density 20-pin packages s Hysteresis at bus inputs improves noise margins s 3-STATE outputs Ordering Code: Order Number Package Number Package Description DM74LS645WM M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide DM74L

DM74LS645 General Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus depending upon the level at the direction control (DIR) input. The enable input (G) can be used to disable the dev.

DM74LS645 Datasheet (51.53 KB)

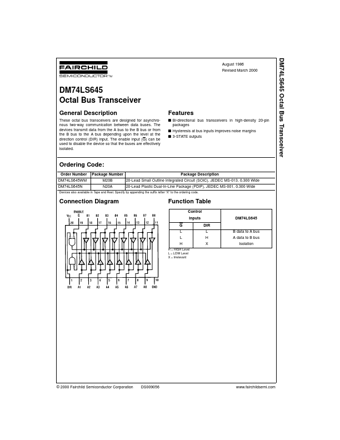

Preview of DM74LS645 PDF

Datasheet Details

Part number:

DM74LS645

Manufacturer:

Fairchild Semiconductor

File Size:

51.53 KB

Description:

Octal bus transceiver.
