DM74LS74A

Dual Positive-Edge-Triggered D Flip-Flops

DM74LS74A General Description

This device contains two independent positive-edge-triggered D flip-flops with complementary outputs. The information on the D input is accepted by the flip-flops on the positive going edge of the clock pulse. The triggering occurs at a voltage level and is not directly related to the transition tim.

DM74LS74A Datasheet (67.29 KB)

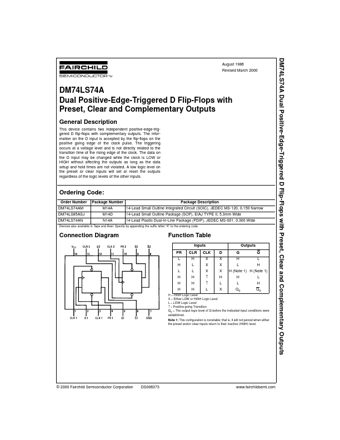

Preview of DM74LS74A PDF

Datasheet Details

Part number:

DM74LS74A

Manufacturer:

Fairchild Semiconductor

File Size:

67.29 KB

Description:

Dual positive-edge-triggered d flip-flops.
DM74LS74A Dual Positive-Edge-Triggered D Flip-Flops with Preset, Clear and Complementary Outputs August 1986 Revised March 2000 DM74LS74A Dual Posit.
