FAN1100_F085

Ignition Gate Driver IC

FAN1100_F085 Features

* Signal Line Input Buffer

* Input spike filter

* Operation from Ignition or Battery line

* Ground shift tolerance +/- 1.5 V

* Programmable maximum dwell time

* Programmable Input Pull down current

* Control IGBT current limiting through Vsense pin

* Soft Shutdown fol

FAN1100_F085 General Description

The FAN1100_F085 is designed to directly drive an ignition IGBT and control the current and spark event of the coil. The coil current is controlled via the input pin. When the input is driven high, the output of the FAN1100_F085 is enabled to turn on the IGBT and start charging.

FAN1100_F085 Datasheet (520.65 KB)

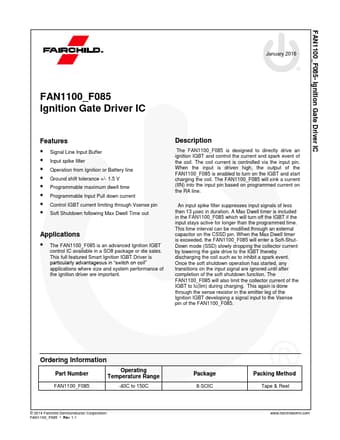

Preview of FAN1100_F085 PDF

Datasheet Details

Part number:

FAN1100_F085

Manufacturer:

Fairchild Semiconductor

File Size:

520.65 KB

Description:

Ignition gate driver ic.
