FAN1117A Datasheet, Regulator, Fairchild Semiconductor

✔ FAN1117A Features

Low dropout voltage Load regulation: 0.05% typical Trimmed current limit On-chip thermal limiting Standard SOT-223, TO-220, and TO-252 packages Three-terminal

✔ FAN1117A Application

Active SCSI terminators High efﬁciency linear regulators Post regulators for switching supplies

PDF File Details

Fairchild Semiconductor manufacturer logo

Part number:

FAN1117A

Manufacturer:

Fairchild Semiconductor

File Size:

49.85kb

Download:

📄 Datasheet

Description:

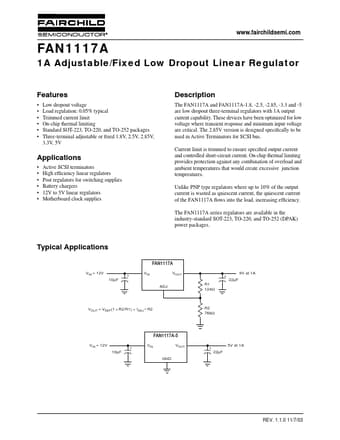

1a adjustable/fixed low dropout linear regulator. The FAN1117A and FAN1117A-1.8, -2.5, -2.85, -3.3 and -5 are low dropout three-terminal regulators with 1A output current capability.

📥 Download PDF (49.85kb)
