FAN5404

USB-Compliant Single-Cell Li-Ion Switching Charger

FAN5404 Features

* Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs Faster Charging than Linear Charge Voltage Accuracy: 0.5% at 25°C 1% from 0 to 125°C Description The FAN5400 family (FAN540X) combines a highly integ

FAN5404 General Description

The FAN5400 family (FAN540X) combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Li-ion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery. The charging parameters and operating modes are 2 programmable through .

FAN5404 Datasheet (1.10 MB)

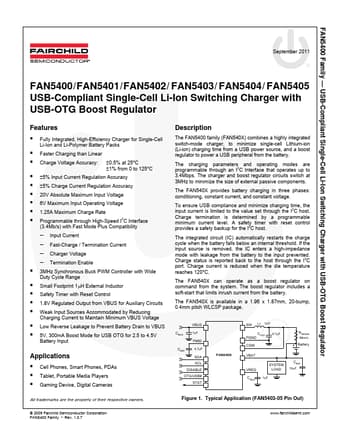

Preview of FAN5404 PDF

Datasheet Details

Part number:

FAN5404

Manufacturer:

Fairchild Semiconductor

File Size:

1.10 MB

Description:

Usb-compliant single-cell li-ion switching charger.
www.DataSheet.co.kr FAN5400 Family

* USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator September 2011 FAN5400.
