FAN54045

Li-Ion Switching Charger

FAN54045 Features

* Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs

* Power Path Circuit Ensures Fast System Startup with a Dead Battery when VBUS is Connected

* 1.55 A Maximum Charge Current

* Float Voltage Accuracy: - 0.5% at 25°C - 1% from 0 to 125°C

FAN54045 General Description

The FAN5404X family includes I2C controlled 1.55 A USBcompliant switch-mode chargers with power path operation and USB OTG boost operation. Integrated with the charger, the IC supports production test mode, which provides 4.2 V at up to 2.3 A to the system. To facilitate fast system startup, the IC.

FAN54045 Datasheet (2.19 MB)

Preview of FAN54045 PDF

Datasheet Details

Part number:

FAN54045

Manufacturer:

Fairchild Semiconductor

File Size:

2.19 MB

Description:

Li-ion switching charger.
FAN54040 - FAN54047

* USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040

* .

📁 Related Datasheet

FAN5404 - USB-Compliant Single-Cell Li-Ion Switching Charger (Fairchild Semiconductor)
.DataSheet.co.kr FAN5400 Family — USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator September 2011 FAN5400 / FAN54.

FAN54040 - Li-Ion Switching Charger (Fairchild Semiconductor)
FAN54040 - FAN54047— USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040 — FAN54047 USB-OTG.

FAN54041 - Li-Ion Switching Charger (Fairchild Semiconductor)
FAN54040 - FAN54047— USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040 — FAN54047 USB-OTG.

FAN54042 - Li-Ion Switching Charger (Fairchild Semiconductor)
FAN54040 - FAN54047— USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040 — FAN54047 USB-OTG.

FAN54046 - Li-Ion Switching Charger (Fairchild Semiconductor)
FAN54040 - FAN54047— USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040 — FAN54047 USB-OTG.

FAN54047 - Li-Ion Switching Charger (Fairchild Semiconductor)
FAN54040 - FAN54047— USB-OTG,1.55 A Li-Ion Switching Charger with Power Path and 2.3 A Production Test Support July 2013 FAN54040 — FAN54047 USB-OTG.

FAN5400 - USB-Compliant Single Cell Li-Ion Switching Charger (Fairchild Semiconductor)
.DataSheet.co.kr FAN5400 Family— USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator November 2010 FAN5400 Family US.

FAN5400 - USB-Compliant Single-Cell Li-Ion Switching Charger (Fairchild Semiconductor)
.DataSheet.co.kr FAN5400 Family — USB-Compliant Single-Cell Li-Ion Switching Charger with USB-OTG Boost Regulator September 2011 FAN5400 / FAN54.

TAGS

FAN54045 Li-Ion Switching Charger Fairchild Semiconductor

Image Gallery

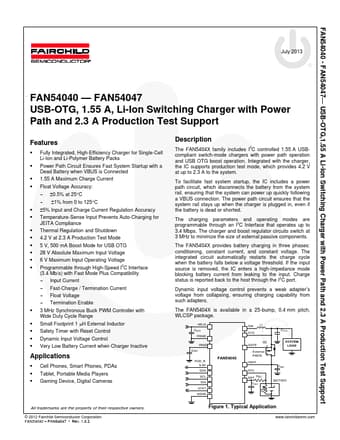

FAN54045 Datasheet Preview Page 2 FAN54045 Datasheet Preview Page 3
