FAN53200 - Digitally Programmable Regulator

Product Overview

ON Semiconductor

Datasheet Details

Part number	FAN53200
Manufacturer	ON Semiconductor
File Size	1.03 MB
Description	Digitally Programmable Regulator
Datasheet	FAN53200 Datasheet

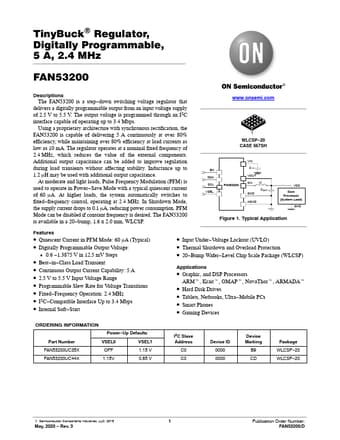

Additional preview pages of the FAN53200 datasheet.

Product details

Description

The FAN53200 is a step down switching voltage regulator that delivers a digitally programmable output from an input voltage supply of 2.5 V to 5.5 V.The output voltage is programmed through an I2C interface capable of operating up to 3.4 Mbps.Using a proprietary architecture with synchronous rectification, the FAN53200 is capable of delivering 5 A continuously at over 80% efficiency, while maintaining over 80% efficiency at load currents as low as 10 mA.The regulator operates at a no

Features

Quiescent Current in PFM Mode: 60 mA (Typical).
Digitally Programmable Output Voltage:.
0.6.
1.3875 V in 12.5 mV Steps.
Best.
in.
Class Load Transient.
Continuous Output Current Capability: 5 A.
2.5 V to 5.5 V Input Voltage Range.
Programmable Slew Rate for Voltage Transitions.
Fixed.
Frequency Operation: 2.4 MHz.
I2C.
Compatible Interface Up to 3.4 Mbps.
Internal Soft.
