FAN53168 6-Bit VID Controlled 2-4 Phase DC-DC Controller

The FAN53168 is a multi-phase DC-DC controller for implementing high-current, low-voltage, CPU core power regulation circuits. It is part of a chipset that includes external MOSFET drivers and power MOSFETS. The FAN53168 drives up to 4 synchronous-rectified buck channels in parallel. The multi-phase .

FAN53168 Features

* Precision Multi-Phase DC-DC Core Voltage Regulation

* ±10mV Output Voltage Accuracy Over Temperature

* Differential Remote Voltage Sensing

* Selectable 2, 3, or 4 Phase Operation

* Up to 1MHz per Phase Operation (4MHz ripple Frequency)

* Lossless Ind

FAN53168_FairchildSemiconductor.pdf

Preview of FAN53168 PDF

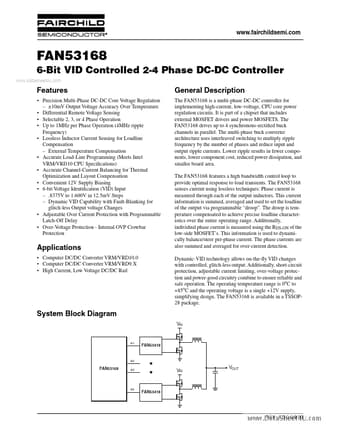

FAN53168 Datasheet Preview Page 2 FAN53168 Datasheet Preview Page 3
