FAN53528

Digitally Programmable Buck Regulator

ON Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	FAN53528BUC08X	IC REG BUCK PROG 3A 15WLCSP	DigiKey	2750	0	$0	🛒 Buy Now

FAN53528 Datasheet (1.64 MB)

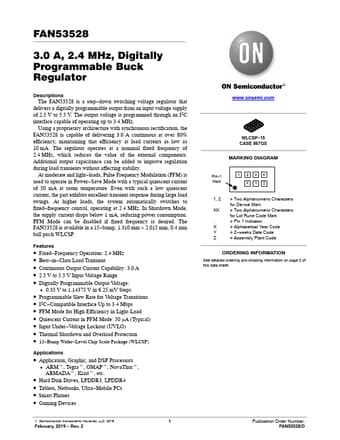

FAN53528 Datasheet Preview — Preview of FAN53528 PDF

Datasheet Details

Part number:

FAN53528

Manufacturer:

ON Semiconductor ↗

File Size:

1.64 MB

Description:

Digitally programmable buck regulator.

FAN53528 Features

* Fixed

* Frequency Operation: 2.4 MHz

* Best

* in

* Class Load Transient

* Continuous Output Current Capability: 3.0 A

* 2.5 V to 5.5 V Input Voltage Range

* Digitally Programmable Output Voltage:

* 0.35 V to 1.14375 V in 6.25 mV Ste

FAN53528 General Description

The FAN53528 is a step

*down switching voltage regulator that delivers a digitally programmable output from an input voltage supply of 2.5 V to 5.5 V. The output voltage is programmed through an I2C interface capable of operating up to 3.4 MHz. Using a proprietary architecture with synchrono.
