FAN53527 - Buck Regulator

Product Overview

ON Semiconductor

Datasheet Details

Part number	FAN53527
Manufacturer	ON Semiconductor
File Size	686.86 KB
Description	Buck Regulator
Datasheet	FAN53527 Datasheet

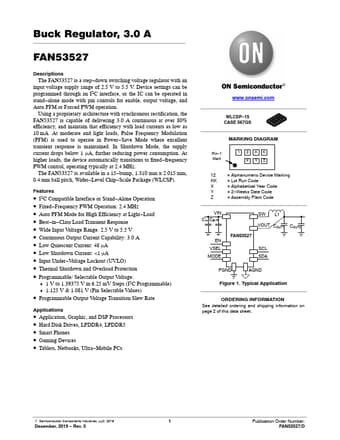

Additional preview pages of the FAN53527 datasheet.

Product details

Description

The FAN53527 is a step down switching voltage regulator with an input voltage supply range of 2.5 V to 5.5 V.Device settings can be programmed through an I2C interface, or the IC can be operated in stand alone mode with pin controls for enable, output voltage, and Auto PFM or Forced PWM operation.

Features

I2C Compatible Interface or Stand.
Alone Operation.
Fixed.
Frequency PWM Operation: 2.4 MHz.
Auto PFM Mode for High Efficiency at Light.
Load.
Best.
in.
Class Load Transient Response.
Wide Input Voltage Range: 2.5 V to 5.5 V.
Continuous Output Current Capability: 3.0 A.
Low Quiescent Current: 48 mA.
Low Shutdown Current:.
