FAN53541, Synchronous Buck Regulator

FAN53541 * 2.4MHz, 5A TinyBuck™ Synchronous Buck Regulator February 2014 FAN53541 2.4 MHz, 5 A TinyBuck™ Synchronous Buck Regulator .
The FAN53541 is a step-down switching voltage regulator that delivers an adjustable output from an input voltage supply of 2.

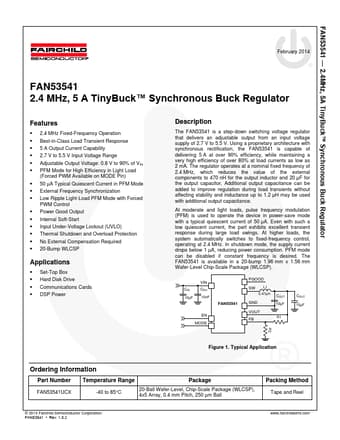

datasheet Preview Page 1 from Datasheet4u.com

FAN53541-FairchildSemiconductor.pdf

FAN53541 Datasheet Preview — Preview of FAN53541 PDF

Datasheet Details

Part number:

FAN53541

Manufacturer:

Fairchild Semiconductor

File Size:

1.45 MB

Description:

Synchronous Buck Regulator

Features

* 2.4 MHz Fixed-Frequency Operation
* Best-in-Class Load Transient Response
* 5 A Output Current Capability
* 2.7 V to 5.5 V Input Voltage Range
* Adjustable Output Voltage: 0.8 V to 90% of VIN
* PFM Mode for High Efficiency in Light Load (Forced PWM Available on MODE Pin)

Applications

* Set-Top Box
* Hard Disk Drive
* Communications Cards
