FAN53180

6-Bit VID Controlled 2-4 Phase DC-DC Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Rochester Electronics LLC FAN53180MTCX IC REG LIN SWITCHING REG/CNTRLR DigiKey 0 143 units
$2.1

FAN53180 Datasheet (899.59 KB)

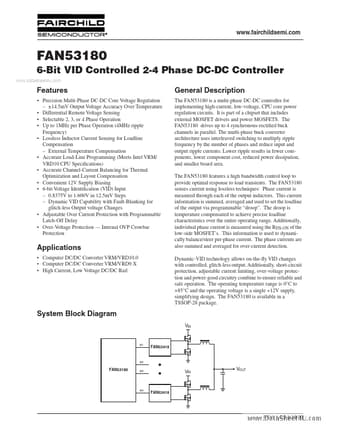

Preview of FAN53180 PDF Datasheet

Datasheet Details

Part number:

FAN53180

Manufacturer:

Fairchild Semiconductor

File Size:

899.59 KB

Description:

6-bit vid controlled 2-4 phase dc-dc controller

FAN53180 Features

* Precision Multi-Phase DC-DC Core Voltage Regulation

* ±14.5mV Output Voltage Accuracy Over Temperature

* Differential Remote Voltage Sensing

* Selectable 2, 3, or 4 Phase Operation

* Up to 1MHz per Phase Operation (4MHz ripple Frequency)

* Lossless I

FAN53180 General Description

The FAN53180 is a multi-phase DC-DC controller for implementing high-current, low-voltage, CPU core power regulation circuits. It is part of a chipset that includes external MOSFET drivers and power MOSFETS. The FAN53180 drives up to 4 synchronous-rectified buck channels in parallel. The multi-phase .
