FAN5332A, High Current Serial LED Driver and OLED Supply

FAN5332A High Efﬁciency, High Current Serial LED Driver and OLED Supply with 30V Integrated Switch August 2005 FAN5332A High Efﬁciency, High Current.
The FAN5332A is an LED driver that features ﬁxed frequency mode operation and an integrated FET switch.

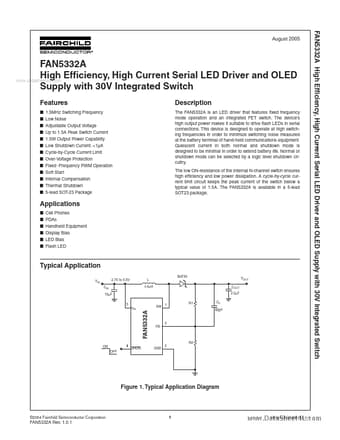

datasheet Preview Page 1 from Datasheet4u.com

FAN5332A_FairchildSemiconductor.pdf

FAN5332A Datasheet Preview — Preview of FAN5332A PDF

Datasheet Details

Part number:

FAN5332A

Manufacturer:

Fairchild Semiconductor

File Size:

584.37 KB

Description:

High Current Serial LED Driver and OLED Supply

Features

* 1.5MHz Switching Frequency Low Noise Adjustable Output Voltage Up to 1.5A Peak Switch Current 1.5W Output Power Capability Low Shutdown Current:

Applications

* Cell Phones PDAs Handheld Equipment Display Bias LED Bias Flash LED Typical Application VIN CIN 10µF 5 1 R1 CF 82pF 2.7V to 5.5V L 6.8µH BAT54 COUT 2.2µF VOUT FAN5332A VIN SW FB 3 R2 ON OFF 4 SHDN GND 2 Figure 1. Typical Application Diagram ©2004 Fairchil
