FAN5333A, High Current Serial LED Driver

FAN5333A/FAN5333B High Efﬁciency, High Current Serial LED Driver with 30V Integrated Switch August 2005 FAN5333A/FAN5333B High Efﬁciency, High Curre.
The FAN5333A/FAN5333B is a general purpose LED driver that features ﬁxed frequency mode operation and an integrated FET switch.

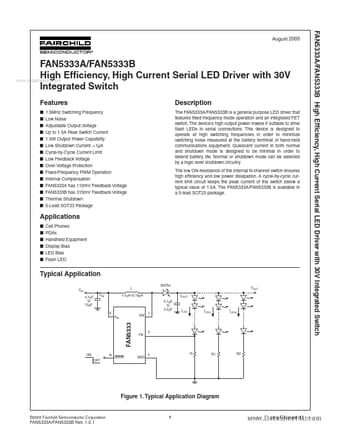

datasheet Preview Page 1 from Datasheet4u.com

FAN5333A_FairchildSemiconductor.pdf

FAN5333A Datasheet Preview — Preview of FAN5333A PDF

Datasheet Details

Part number:

FAN5333A

Manufacturer:

Fairchild Semiconductor

File Size:

577.24 KB

Description:

High Current Serial LED Driver

Features

* 1.5MHz Switching Frequency Low Noise Adjustable Output Voltage Up to 1.5A Peak Switch Current 1.5W Output Power Capability Low Shutdown Current:

Applications

* Cell Phones PDAs Handheld Equipment Display Bias LED Bias Flash LED Typical Application VIN 4.7µF to 10µF CIN L 6.8µH to 10µH 0.1µF to 2.2µF 5 VIN SW 1 BAT54 COUT VOUT ILED ILED1 ILED2 FAN5333 FB 3 ON OFF 4 SHDN GND 2 R R1 R2 Figure 1. Typical Appl
