FAN7535

PFC & Ballast Control IC

FAN7535 Features

* PFC, Ballast Control, and Half-Bridge Driver in One IC

* PFC Driver Current Capability: +500mA/-800mA

* Critical Conduction Mode Control Type PFC

* Internal Clamping Zener Diode (PFC): 23V

* Under-Voltage Lockout with 3.5V of Hysteresis (PFC)

* Inter

FAN7535 General Description

FAN7535 provides simple, high-performance, active power factor correction (PFC), and ballast control. The FAN7535 is optimized for all kinds of fluorescent lamps, which require minimum board area and reduced external components. The FAN7535 PFC control block to reduce the input current THD lower tha.

FAN7535 Datasheet (465.51 KB)

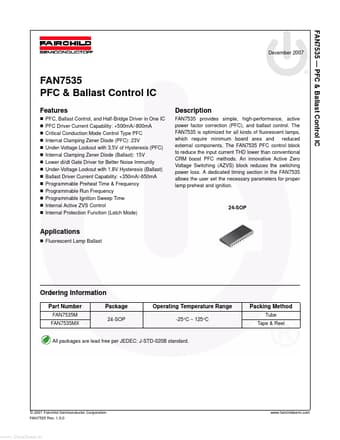

Preview of FAN7535 PDF

Datasheet Details

Part number:

FAN7535

Manufacturer:

Fairchild Semiconductor

File Size:

465.51 KB

Description:

Pfc & ballast control ic.
