FAN7602C Datasheet - Fairchild Semiconductor

Green Current Mode PWM Controller

FAN7602C Features

* Green Current Mode PWM Controller

* Random Frequency Fluctuation for Low EMI

* Internal High-Voltage Startup Switch

* Burst Mode Operation

* Line Voltage Feedforward to Limit Maximum Power

* Line Under-Voltage Protection

* Latch Protection & Internal Soft-Start (10ms) F

FAN7602C General Description

The FAN7602C is a green current-mode PWM controller. It is specially designed for off-line adapter applications; DVDP, VCR, LCD monitor applications; and auxiliary power supplies. The internal high-voltage startup switch and the burst mode operation reduce the power loss in standby mode. As a result.

FAN7602C Datasheet (420.24 KB)

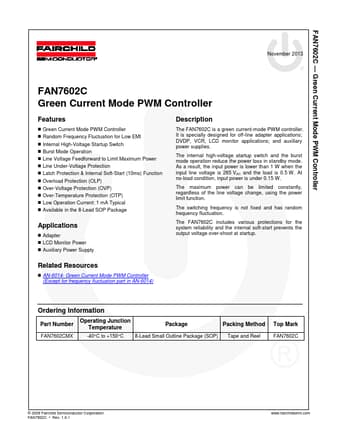

FAN7602C Datasheet Preview — Preview of FAN7602C PDF

Datasheet Details

Part number:

FAN7602C

Manufacturer:

Fairchild Semiconductor

File Size:

420.24 KB

Description:

Green current mode pwm controller.
