FAN7710N, FAN7710 - Ballast Controller

Fairchild Semiconductor

FAN7710N Datasheet Preview — This datasheet PDF includes multiple part numbers: FAN7710N, FAN7710. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FAN7710N, FAN7710
Manufacturer	Fairchild ↗ Semiconductor
File Size	884.96 KB
Description	Ballast Controller
Datasheet	FAN7710-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FAN7710N, FAN7710. Please refer to the document for exact specifications by model.

FAN7710N Product details

Description

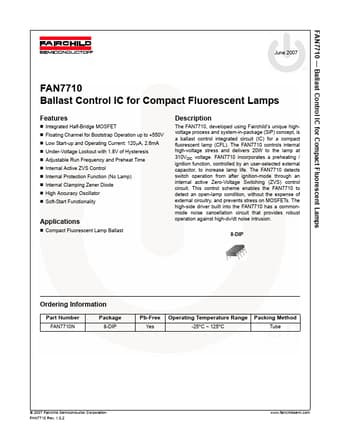

The FAN7710, developed using Fairchild’s unique highvoltage process and system-in-package (SiP) concept, is a ballast control integrated circuit (IC) for a compact fluorescent lamp (CFL).

Features

Integrated Half-Bridge MOSFET.
Floating Channel for Bootstrap Operation up to +550V.
Low Start-up and Operating Current: 120μA, 2.6mA.
Under-Voltage Lockout with 1.8V of Hysteresis.
Adjustable Run Frequency and Preheat Time.
Internal Active ZVS Control.
Internal Protection Function (No Lamp).
Internal Clamping Zener Diode.
High Accuracy Oscillator.
Soft-Start Functionality.
