FCP600N60Z, N-Channel MOSFET

FCP600N60Z / FCPF600N60Z N-Channel MOSFET March 2013 FCP600N60Z / FCPF600N60Z N-Channel SuperFET® II MOSFET 600 V, 7.4 A, 600 mΩ .
® ® SuperFET II MOSFET is Fairchild Semiconductor ’s first generation of high voltage super-junction (SJ) MOSFET family that is utilizing charge balan.

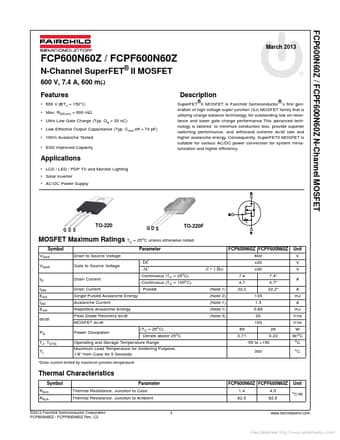

FCP600N60Z_FairchildSemiconductor.pdf

FCP600N60Z Datasheet Preview — Preview of FCP600N60Z PDF

Datasheet Details

Part number:

FCP600N60Z

Manufacturer:

Fairchild Semiconductor

File Size:

362.38 KB

Description:

N-Channel MOSFET

Features

* 650 V @TJ = 150°C
* Max. RDS(on) = 600 mΩ
* Ultra Low Gate Charge (Typ. Qg = 20 nC)
* Low Effective Output Capacitance (Typ. Coss. eff = 74 pF)
* 100% Avalanche Tested

Applications

* LCD / LED / PDP TV and Monitor Lighting
* Solar Inverter
* AC-DC Power Supply D G TO-220 G D S GD S TO-220F S MOSFET Maximum Ratings TC = 25oC unless otherwise noted Symbol VDSS VGSS ID IDM EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain to Source Voltage Gate to Sour
