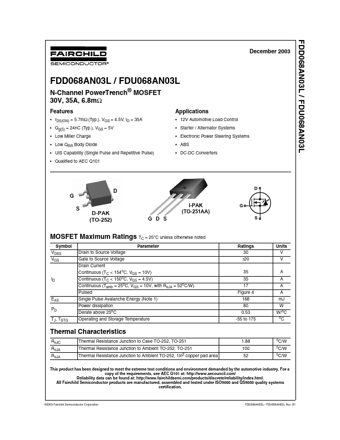

FDD068AN03L Datasheet, Mosfet, Fairchild Semiconductor

FDD068AN03L Features

• Mosfet
• rDS(ON) = 5.7mΩ (Typ.), VGS = 4.5V, ID = 35A
• Qg(5) = 24nC (Typ.), VGS = 5V
• Low Miller Charge
• Low QRR Body Diode
• UIS Capability (Single

PDF File Details

Part number:

FDD068AN03L

Manufacturer:

Fairchild Semiconductor

File Size:

298.56kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

FDD068AN03L Application

• Applications
• 12V Automotive Load Control
• Starter / Alternator Systems
• Electronic Power Steering Systems
• ABS
