FDU044AN03L - N-Channel MOSFET

Datasheet Summary

Features

  • rDS(ON) = 3.6mΩ (Typ. ), VGS = 4.5V, ID = 35A.
  • Qg(5) = 48nC (Typ. ), VGS = 5V.
  • Low Miller Charge.
  • Low QRR Body Diode.
  • UIS Capability (Single Pulse and Repetitive Pulse).
  • Qualified to AEC Q101.

📥 Download Datasheet

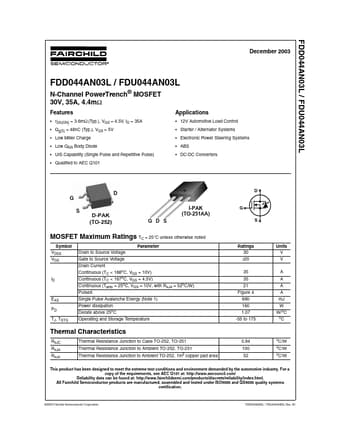

Datasheet preview – FDU044AN03L

Datasheet Details

Part number FDU044AN03L
Manufacturer Fairchild Semiconductor
File Size 298.34 KB
Description N-Channel MOSFET
Datasheet download datasheet FDU044AN03L Datasheet
