FDU068AN03L - N-Channel PowerTrench MOSFET

Datasheet Summary

Features

  • rDS(ON) = 5.7mΩ (Typ. ), VGS = 4.5V, ID = 35A.
  • Qg(5) = 24nC (Typ. ), VGS = 5V.
  • Low Miller Charge.
  • Low QRR Body Diode.
  • UIS Capability (Single Pulse and Repetitive Pulse).
  • Qualified to AEC Q101.

📥 Download Datasheet

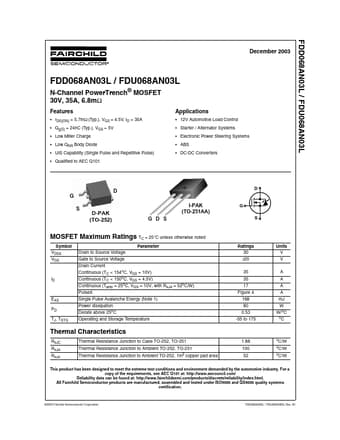

Datasheet preview – FDU068AN03L
