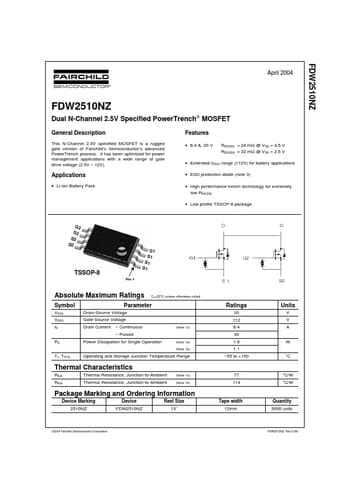

FDW2510NZ Datasheet, Mosfet, Fairchild Semiconductor

FDW2510NZ Features

• Mosfet
• 6.4 A, 20 V RDS(ON) = 24 mΩ @ VGS = 4.5 V RDS(ON) = 32 mΩ @ VGS = 2.5 V
• Extended VGSS range (±12V) for battery applications
• ESD protection diode (note 3)

PDF File Details

Part number:

FDW2510NZ

Manufacturer:

Fairchild Semiconductor

File Size:

89.94kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet. This N-Channel 2.5V specified MOSFET is a rugged gate version of Fairchild’s Semiconductor’s advanced PowerTrench process. It has bee

FDW2510NZ Application

• Applications with a wide range of gate drive voltage (2.5V
    – 12V). Features
• 6.4 A, 20 V RDS(ON) = 24 mΩ @ VGS = 4.5 V RDS
