FDW2516NZ Datasheet, Mosfet, Fairchild Semiconductor

FDW2516NZ Features

  • Mosfet
  • 5.8 A, 20 V RDS(ON) = 30 mΩ @ VGS = 4.5 V RDS(ON) = 40 mΩ @ VGS = 2.5 V
  • Isolated source and drain pins
  • ESD protection diode (note 3)
  • High perfor

PDF File Details

Part number:

FDW2516NZ

Manufacturer:

Fairchild Semiconductor

File Size:

131.08kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This dual N-Channel MOSFET has been designed using Fairchild Semiconductor’s advanced PowerTrench process to optimize the RDS(ON) @ V

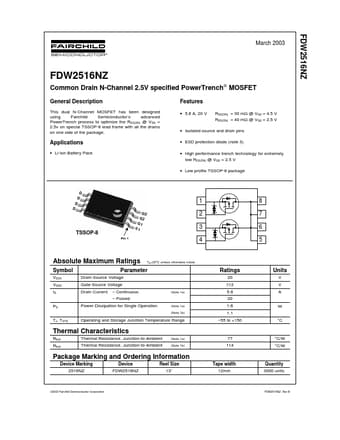

Datasheet Preview: FDW2516NZ 📥 Download PDF (131.08kb)
Page 2 of FDW2516NZ Page 3 of FDW2516NZ

FDW2516NZ Application

  • Applications
  • Li-Ion Battery Pack D D D D G2 S2 G1 S1 Pin 1 1 2 3 4 8 7 6 5 TSSOP-8 Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ
