FDW2515NZ Datasheet, Mosfet, Fairchild Semiconductor

FDW2515NZ Features

  • Mosfet
  • 5.8 A, 20 V RDS(ON) = 28 mΩ @ VGS = 4.5 V RDS(ON) = 38 mΩ @ VGS = 2.5 V
  • Extended VGSS range (±12V) for battery applications
  • ESD protection diode (note 3)

PDF File Details

Part number:

FDW2515NZ

Manufacturer:

Fairchild Semiconductor

File Size:

119.45kb

Download:

📄 Datasheet

Description:

Common drain n-channel 2.5v specified powertrench mosfet. This N-Channel 2.5V specified MOSFET is a rugged gate version of Fairchild's Semiconductor’s advanced PowerTrench process. It has bee

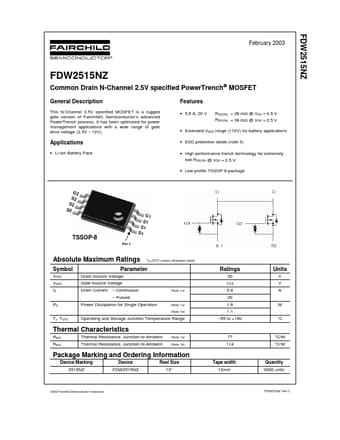

Datasheet Preview: FDW2515NZ 📥 Download PDF (119.45kb)
Page 2 of FDW2515NZ Page 3 of FDW2515NZ

FDW2515NZ Application

  • Applications with a wide range of gate drive voltage (2.5V
      – 12V). Features
  • 5.8 A, 20 V RDS(ON) = 28 mΩ @ VGS = 4.5 V RDS
