FGD4536

360V PDP IGBT

FGD4536 Features

* High Current Capability

* Low Saturation Voltage: VCE(sat) = 1.59 V @ IC = 50 A

* High Input Impedance

* Fast Switching

* RoHS Compliant Applications

* PDP TV, Consumer Appliances September 2013 General Description Using novel trench IGBT technology

FGD4536 General Description

Using novel trench IGBT technology, Fairchild’s new series of trench IGBTs offer the optimum performance for consumer appliances and PDP TV applications where low conduction and switching losses are essential. C G E TO-252/D-PAK Absolute Maximum Ratings Symbol VCES VGES IC pulse(1)
* PD TJ T.

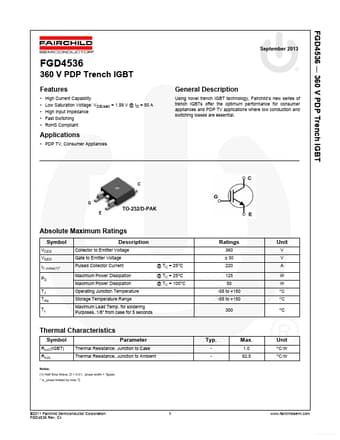

FGD4536 Datasheet (1.07 MB)

Preview of FGD4536 PDF

Datasheet Details

Part number:

FGD4536

Manufacturer:

Fairchild Semiconductor

File Size:

1.07 MB

Description:

360v pdp igbt.
