FGH60N60SFD

Field Stop IGBT

Fairchild Semiconductor

FGH60N60SFD Features

* High current capability

* Low saturation voltage: VCE(sat) =2.3V @ IC = 60A

* High input impedance

* Fast switching

* RoHS compliant tm General Description Using Novel Field Stop IGBT Technology, Fairchild’s new series of Field Stop IGBTs offer the optimum

FGH60N60SFD General Description

Using Novel Field Stop IGBT Technology, Fairchild’s new series of Field Stop IGBTs offer the optimum performance for Induction Heating, UPS, SMPS and PFC applications where low conduction and switching losses are essential. Applications

* Induction Heating, UPS, SMPS, PFC E C G C G COL.

FGH60N60SFD Datasheet (365.23 KB)

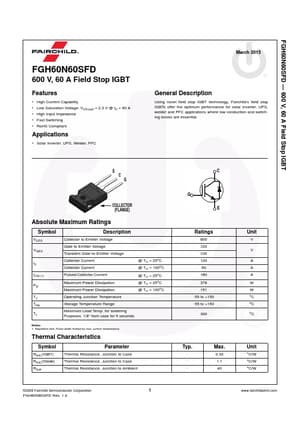

FGH60N60SFD Datasheet Preview — Preview of FGH60N60SFD PDF

Datasheet Details

Part number:

FGH60N60SFD

Manufacturer:

Fairchild Semiconductor

File Size:

365.23 KB

Description:

Field stop igbt.
