FGPF4536 - 360V PDP Trench IGBT

Fairchild Semiconductor

📥 Download Datasheet

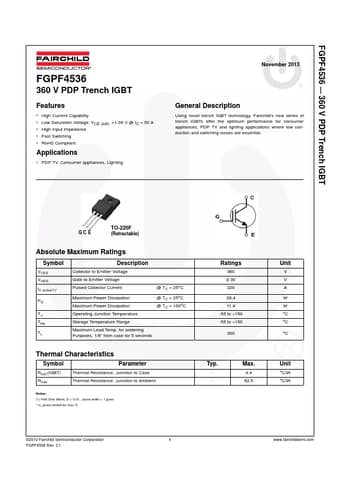

FGPF4536 Datasheet Preview — Preview of FGPF4536 PDF

Datasheet Details

Part number	FGPF4536
Manufacturer	Fairchild Semiconductor
File Size	275.84 KB
Description	360V PDP Trench IGBT
Datasheet	FGPF4536_FairchildSemiconductor.pdf

FGPF4536 Product details

Description

Using novel trench IGBT technology, Fairchild’s new series of trench IGBTs offer the optimum performance for consumer appliances, PDP TV and lighting applications where low conduction and switching losses are essential. PD TJ Tstg TL Description Collector to Emitter Voltage Gate to Emitter Voltage Pulsed Collector Current @ TC = 25oC Maximum Power Dissipation Maximum Power Dissipation Operating Junctio

Features

High Current Capability.
Low Saturation Voltage: VCE (sat) =1.59 V @ IC = 50 A.
High Input Impedance.
Fast Switching.
RoHS Compliant.
