FGPF120N30 Datasheet, igbt equivalent, Fairchild Semiconductor

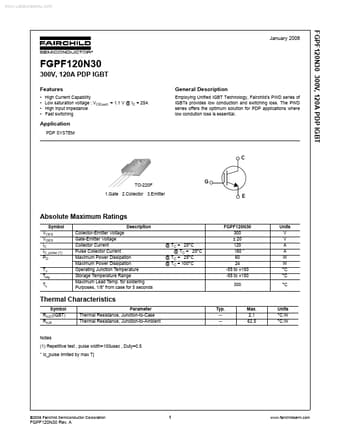

FGPF120N30 Features

• Igbt
• High Current Capability Low saturation voltage : VCE(sat) = 1.1 V @ IC = 25A High input impedance Fast switching General Description Employing U

PDF File Details

Part number:

FGPF120N30

Manufacturer:

Fairchild Semiconductor

File Size:

908.95kb

Download:

📄 Datasheet

Description:

Pdp igbt. Employing Unified IGBT Technology, Fairchild's PWD series of IGBTs provides low conduction and switching loss. The PWD series offers

FGPF120N30 Application

• Applications where low condution loss is essential. Application PDP SYSTEM C TO-220F 1.Gate 2.Collector 3.Emitter G E Absolute Maximum Ratings
