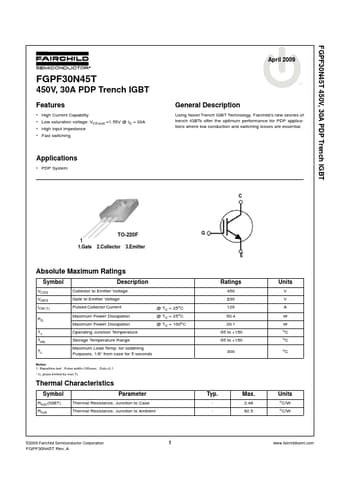

FGPF30N45T Datasheet, igbt equivalent, Fairchild Semiconductor

FGPF30N45T Features

• Igbt
• High Current Capability
• Low saturation voltage: VCE(sat) =1.55V @ IC = 30A
• High input impedance
• Fast switching Applications
• PDP System

PDF File Details

Part number:

FGPF30N45T

Manufacturer:

Fairchild Semiconductor

File Size:

595.80kb

Download:

📄 Datasheet

Description:

30a pdp trench igbt. Using Novel Trench IGBT Technology, Fairchild’s new sesries of trench IGBTs offer the optimum performance for PDP applications where

FGPF30N45T Application

• Applications
• PDP System April 2009 tm General Description Using Novel Trench IGBT Technology, Fairchild’s new sesries of trench IGBTs off
