FIN324C Datasheet - Fairchild Semiconductor

FIN324C 24-Bit Ultra-Low Power Serializer Deserializer Supporting Single and Dual Displays

The FIN324C is a 24-bit serializer / deserializer with dual strobe inputs. The device can be configured as a master or slave device through the master/slave select pin (M/S). This allows for the same device to be used as either a serializer or deserializer, minimizing component types in the system. .

FIN324C Features

* Ultra-Low Operating Power: ~4mA at 5.44MHz Supports Dual-Display Implementations with RGB or Microcontroller Interface No External Timing Reference Needed SPI Mode Support Single Device Operat

FIN324C Datasheet (594.63 KB)

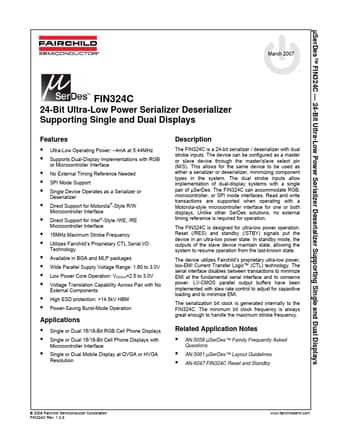

FIN324C Datasheet Preview — Preview of FIN324C PDF

Datasheet Details

Part number:

FIN324C

Manufacturer:

Fairchild Semiconductor

File Size:

594.63 KB

Description:

24-bit ultra-low power serializer deserializer supporting single and dual displays.
