FIN3383 - (FIN3383 - FIN3386) Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers

Description

The FIN3385 and FIN3383 transform 28 bit wide parallel LVTTL (Low Voltage TTL) data into 4 serial LVDS (Low Voltage Differential Signaling) data streams.

A phaselocked transmit clock is transmitted in parallel with the data stream over a separate LVDS link.

Features

  • s Low power consumption s 20 MHz to 85 MHz shift clock support s r1V common-mode range around 1.2V s Narrow bus reduces cable size and cost s High throughput (up to 2.38 Gbps throughput) s Internal PLL with no external component s Compatible with TIA/EIA-644 specification s Devices are offered 56-lead TSSOP packages Ordering Code: Order Number FIN3383MTD FIN3384MTD FIN3385MTD FIN3386MTD Package Number MTD56 MTD56 MTD56 MTD56 Package.

📥 Download Datasheet

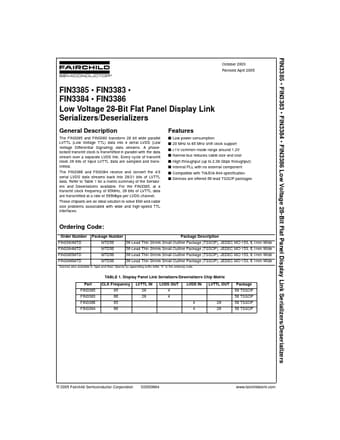

Datasheet preview – FIN3383

Datasheet Details

Part number FIN3383
Manufacturer Fairchild Semiconductor
File Size 576.48 KB
Description (FIN3383 - FIN3386) Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers
Datasheet download datasheet FIN3383 Datasheet
Additional preview pages of the FIN3383 datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor
  • FIN3384 - (FIN3383 - FIN3386) Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers
  • FIN3385 - (FIN3383 - FIN3386) Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers
  • FIN3386 - (FIN3383 - FIN3386) Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers
  • FIN324C - 24-Bit Ultra-Low Power Serializer Deserializer Supporting Single and Dual Displays
  • FIN1001 - 3.3V LVDS 1-Bit High Speed Differential Driver
  • FIN1002 - LVDS 1-Bit High Speed Differential Receiver
  • FIN1017 - 3.3V LVDS 1-Bit High Speed Differential Driver
  • FIN1018 - 3.3V LVDS 1-Bit High Speed Differential Receiver

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com FIN3385 • FIN3383 • FIN3384 • FIN3386 Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers October 2003 Revised April 2005 FIN3385 • FIN3383 • FIN3384 • FIN3386 Low Voltage 28-Bit Flat Panel Display Link Serializers/Deserializers General Description The FIN3385 and FIN3383 transform 28 bit wide parallel LVTTL (Low Voltage TTL) data into 4 serial LVDS (Low Voltage Differential Signaling) data streams. A phaselocked transmit clock is transmitted in parallel with the data stream over a separate LVDS link. Every cycle of transmit clock 28 bits of input LVTTL data are sampled and transmitted. The FIN3386 and FIN3384 receive and convert the 4/3 serial LVDS data streams back into 28/21 bits of LVTTL data.
