FPF2146

Full Function Load Switch

Fairchild Semiconductor

FPF2146 Features

* 1.8 to 5.5V Input Voltage Range

* Controlled Turn-On

* 200mA and 400mA Current Limit Options

* Undervoltage Lockout

* Thermal Shutdown

FPF2146 General Description

The FPF2140/42/43/44/46/47 is a series of load switches which provides full protection to systems and loads which may encounter large current conditions. These devices contain a 0.12Ω current-limited P-channel MOSFET which can operate over an input voltage range of 1.8-5.5V. Internally, current is p.

FPF2146 Datasheet (868.56 KB)

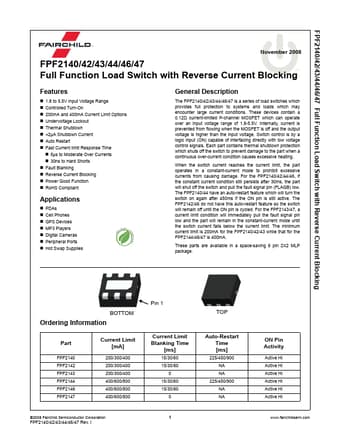

FPF2146 Datasheet Preview — Preview of FPF2146 PDF

Datasheet Details

Part number:

FPF2146

Manufacturer:

Fairchild Semiconductor

File Size:

868.56 KB

Description:

Full function load switch.
FPF2140/42/43/44/46/47 Full Function Load Switch with Reverse Current Blocking November 2008 FPF2140/42/43/44/46/47 Full Function Load Switch with Re.
