FPF2147, FPF2140 Full Function Load Switch

FPF2147 Description

FPF2140/42/43/44/46/47 Full Function Load Switch with Reverse Current Blocking November 2008 FPF2140/42/43/44/46/47 Full Function Load Switch with Re.
The FPF2140/42/43/44/46/47 is a series of load switches which provides full protection to systems and loads which may encounter large current conditio.

FPF2147 Features

* 1.8 to 5.5V Input Voltage Range
* Controlled Turn-On
* 200mA and 400mA Current Limit Options
* Undervoltage Lockout
* Thermal Shutdown

FPF2147 Applications

* PDAs
* Cell Phones
* GPS Devices
* MP3 Players
* Digital Cameras
* Peripheral Ports

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FPF2147, FPF2140. Please refer to the document for exact specifications by model.

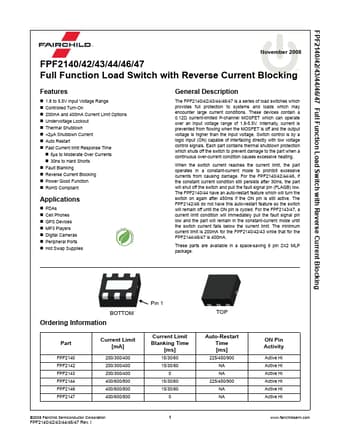

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FPF2147, FPF2140
Manufacturer
Fairchild Semiconductor
File Size
868.56 KB
Datasheet
FPF2140-FairchildSemiconductor.pdf
Description
Full Function Load Switch
Note
This datasheet PDF includes multiple part numbers: FPF2147, FPF2140.
Please refer to the document for exact specifications by model.
