FPF2487 - Dual Channel Over-Voltage Protection Load Switch

Fairchild Semiconductor

📥 Download Datasheet

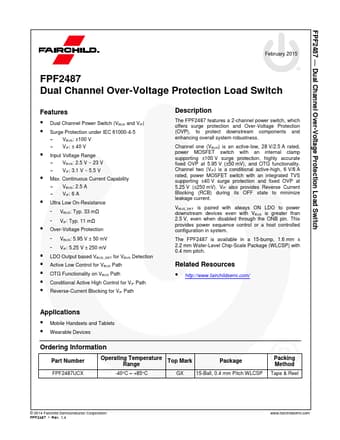

FPF2487 Datasheet Preview — Preview of FPF2487 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FPF2487
Manufacturer	Fairchild ↗ Semiconductor
File Size	634.86 KB
Description	Dual Channel Over-Voltage Protection Load Switch
Datasheet	FPF2487-FairchildSemiconductor.pdf

FPF2487 Product details

Description

The FPF2487

Features

Dual Channel Power Switch (VBUS and VIF).
Surge Protection under IEC 61000-4-5 - VBUS: ±100 V - VIF: ± 40 V.
Input Voltage Range - VBUS: 2.5 V ~ 23 V - VIF: 3.1 V ~ 5.5 V.
Max. Continuous Current Capability - VBUS: 2.5 A - VIF: 6 A.
Ultra Low On-Resistance - VBUS: Typ. 33 mΩ - VIF: Typ. 11 mΩ.
Over-Voltage Protection - VBUS: 5.95 V ± 50 mV - VIF: 5.25 V ± 250 mV.
LDO Output based VBUS_DET for VBUS Detection.
Active Low Control for VBUS Path.
OTG Func.
