FPF2496 Datasheet - Fairchild Semiconductor

Over-Current Protection Load Switch

FPF2496 Features

* VIN: 3.5 V~5.5 V

* 28 V Absolute Ratings at VIN

* Current Capability: 2.5 A

* Adjustable Current Limit: (Typ.) 0.1 A~2.5 A with 10% Accuracy

* RON: Maximum 100 mΩ at 5 VIN and 1A IOUT

* Input OVP: Min.=5.6 V, Typ.=5.8 V, Max.=6 V

* Output Discharge During Off State

FPF2496 General Description

The FPF2496 advanced load-management switch targets applications requiring a highly integrated solution. It disconnects loads powered from the DC power rail (<6 V) with stringent off-state current targets and high load capacitances (<100 µF). The FPF2496 consists of a slew-rate controlled low-impeda.

FPF2496 Datasheet (697.82 KB)

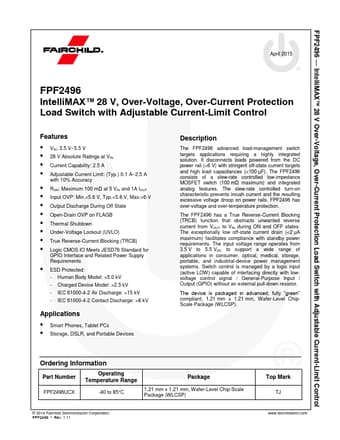

FPF2496 Datasheet Preview — Preview of FPF2496 PDF

Datasheet Details

Part number:

FPF2496

Manufacturer:

Fairchild Semiconductor

File Size:

697.82 KB

Description:

Over-current protection load switch.
FPF2496 IntelliMAX™ 28 V Over-Voltage, Over-Current Protection Load Switch with Adjustable Current-Limit Control April 2015 FPF2496 Intell.
