FPF2488 - Dual Channel Over-Voltage Protection Load Switch

Fairchild Semiconductor

📥 Download Datasheet

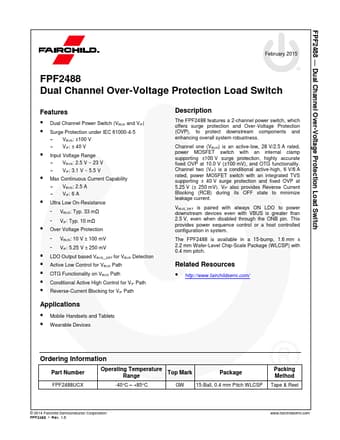

FPF2488 Datasheet Preview — Preview of FPF2488 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FPF2488
Manufacturer	Fairchild ↗ Semiconductor
File Size	634.50 KB
Description	Dual Channel Over-Voltage Protection Load Switch
Datasheet	FPF2488-FairchildSemiconductor.pdf

FPF2488 Product details

Description

The FPF2488

Features

Dual Channel Power Switch (VBUS and VIF).
Surge Protection under IEC 61000-4-5 - VBUS: ±100 V - VIF: ± 40 V.
Input Voltage Range - VBUS: 2.5 V ~ 23 V - VIF: 3.1 V ~ 5.5 V.
Max Continuous Current Capability - VBUS: 2.5 A - VIF: 6 A.
Ultra Low On-Resistance - VBUS: Typ. 33 mΩ - VIF: Typ. 10 mΩ.
Over Voltage Protection - VBUS: 10 V ± 100 mV - VIF: 5.25 V ± 250 mV.
LDO Output based VBUS_DET for VBUS Detection.
Active Low Control for VBUS Path.
OTG Functi.
