FQD4N50 Datasheet, Mosfet, Fairchild Semiconductor

FQD4N50 Features

  • Mosfet
  • 2.6 A, 500 V, RDS(on)=2.7 Ω(Max.)@VGS=10 V, ID=1.3 A
  • Low Gate Charge (Typ. 10 nC)
  • Low Crss (Typ. 6.0 pF)
  • 100% Avalanche Tested

PDF File Details

Part number:

FQD4N50

Manufacturer:

Fairchild Semiconductor

File Size:

871.27kb

Download:

📄 Datasheet

Description:

500v n-channel mosfet. This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor®’s proprietary planar stripe and DMOS technolo

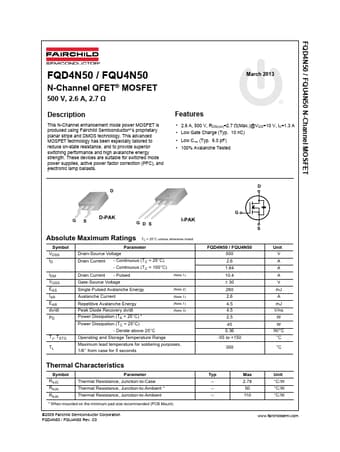

Datasheet Preview: FQD4N50 📥 Download PDF (871.27kb)
Page 2 of FQD4N50 Page 3 of FQD4N50
