H11AA1-M - (H11AAx-M) AC Input/Phototransistor Optocouplers

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	H11AA1-M
Manufacturer	Fairchild Semiconductor
File Size	511.35 KB
Description	(H11AAx-M) AC Input/Phototransistor Optocouplers
Datasheet	H11AA1-M Datasheet

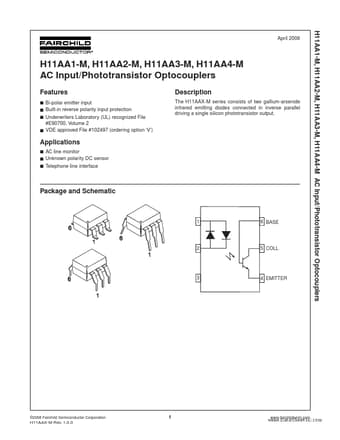

Additional preview pages of the H11AA1-M datasheet.

Product details

Description

The H11AAX-M series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output. VDE approved File #102497 (ordering option ‘V’) Applications AC line monitor Unknown polarity DC sensor Telephone line interface Package and Schematic 1 6 BASE 2 5 COLL 3 4 EMITTER ©2006 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com H11AAX-M Rev.1.0.0 H11AA1-M, H11AA2-M,

Features

Bi-polar emitter input.
Built-in reverse polarity input protection.
Underwriters Laboratory (UL) recognized File.
