H11AA1M - (H11AA1M - H11AA4M) AC Input/Phototransistor Optocouplers

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	H11AA1M
Manufacturer	Fairchild Semiconductor
File Size	294.13 KB
Description	(H11AA1M - H11AA4M) AC Input/Phototransistor Optocouplers
Datasheet	H11AA1M Datasheet

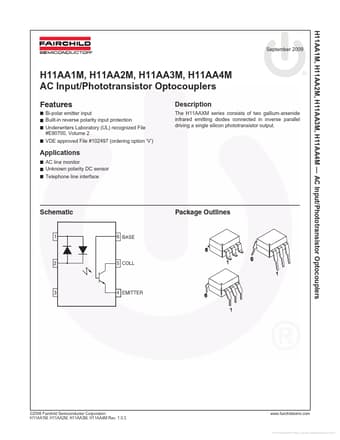

Additional preview pages of the H11AA1M datasheet.

Product details

Description

The H11AAXM series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor output. AC line monitor Unknown polarity DC sensor Telephone line interface Schematic Package Outlines 1 6 BASE 2 5 COLL 3 4 EMITTER ©2006 Fairchild Semiconductor Corporation H11AA1M, H11AA2M, H11AA3M, H11AA4M Rev.1.0.3 www.fairchildsemi.com Free Datasheet http://www.datasheet4u.com/ H11AA1M, H11AA2M, H11A

Features

Bi-polar emitter input.
Built-in reverse polarity input protection.
Underwriters Laboratory (UL) recognized File #E90700, Volume 2.
VDE approved File #102497 (ordering option ‘V’).
