H11AA3-M, H11AA1-M, (H11AAx-M) AC Input/Phototransistor Optocouplers

H11AA1-M, H11AA2-M, H11AA3-M, H11AA4-M AC Input/Phototransistor Optocouplers April 2006 H11AA1-M, H11AA2-M, H11AA3-M, H11AA4-M AC Input/Phototransis.
The H11AAX-M series consists of two gallium-arsenide infrared emitting diodes connected in inverse parallel driving a single silicon phototransistor o.

datasheet Preview Page 1 from Datasheet4u.com

H11AA1-M_FairchildSemiconductor.pdf

H11AA3-M Datasheet Preview — This datasheet PDF includes multiple part numbers: H11AA3-M, H11AA1-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

H11AA3-M, H11AA1-M

Manufacturer:

Fairchild Semiconductor

File Size:

511.35 KB

Description:

(H11AAx-M) AC Input/Phototransistor Optocouplers

Note:

This datasheet PDF includes multiple part numbers: H11AA3-M, H11AA1-M.
Please refer to the document for exact specifications by model.

Features

* Bi-polar emitter input
* Built-in reverse polarity input protection

Applications

* AC line monitor
* Unknown polarity DC sensor

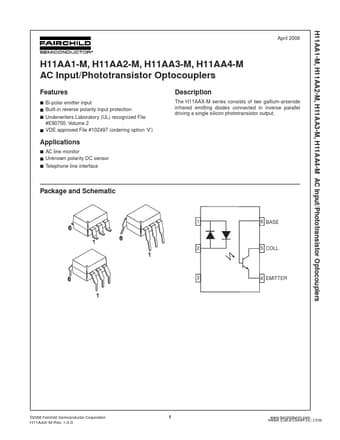

* Telephone line interface Package and Schematic 1 6 BASE 2 5 COLL 3 4 EMITTER ©2006 Fairchild Semiconductor Corporation 1 www. fairchildsemi. com H11AAX-M Rev. 1.0.0 H11AA1-M, H11AA2-M, H11AA3-M, H11AA4-M AC Input/Phototransistor
