HUFA76407D3S - N-Channel MOSFET

Features

  • Ultra Low On-Resistance - rDS(ON) = 0.092Ω, VGS = 10V - rDS(ON) = 0.107Ω, VGS = 5V.
  • Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www. fairchildsemi. com.
  • Peak Current vs Pulse Width Curve.
  • UIS Rating Curve.
  • Switching Time vs RGS Curves HUFA76407D3 HUFA76407D3S Symbol D G Ordering Information S PART NUMBER HUFA76407D3 HUFA76407D3S.

📥 Download Datasheet

Datasheet preview – HUFA76407D3S

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

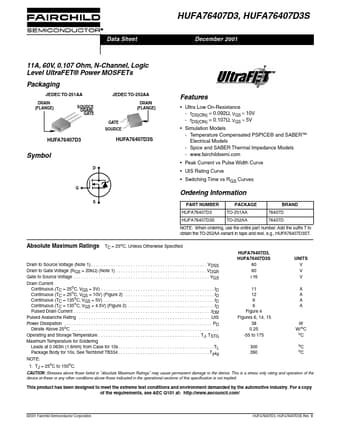

HUFA76407D3, HUFA76407D3S Data Sheet December 2001 11A, 60V, 0.107 Ohm, N-Channel, Logic Level UltraFET® Power MOSFETs Packaging JEDEC TO-251AA DRAIN (FLANGE) SOURCE DRAIN GATE GATE SOURCE JEDEC TO-252AA DRAIN (FLANGE) Features • Ultra Low On-Resistance - rDS(ON) = 0.092Ω, VGS = 10V - rDS(ON) = 0.107Ω, VGS = 5V • Simulation Models - Temperature Compensated PSPICE® and SABER™ Electrical Models - Spice and SABER Thermal Impedance Models - www.fairchildsemi.com • Peak Current vs Pulse Width Curve • UIS Rating Curve • Switching Time vs RGS Curves HUFA76407D3 HUFA76407D3S Symbol D G Ordering Information S PART NUMBER HUFA76407D3 HUFA76407D3S PACKAGE TO-251AA TO-252AA BRAND 76407D 76407D NOTE: When ordering, use the entire part number.
