IRFI820A - Advanced Power MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

IRFI820A Advanced Power MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRFI820A

Datasheet Details

Part number	IRFI820A
Manufacturer	Fairchild Semiconductor
File Size	255.23 KB
Description	Advanced Power MOSFET
Datasheet	IRFI820A Datasheet

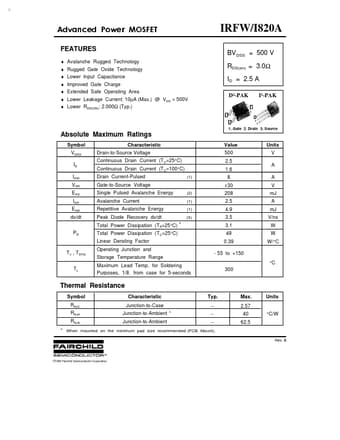

Additional preview pages of the IRFI820A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 500V.
Lower RDS(ON): 2.000Ω (Typ. ) IRFW/I820A BVDSS = 500 V RDS(on) = 3.0Ω ID = 2.5 A D2-PAK 2 I2-PAK 1 1 3 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD Characteristic Drain-to-Source Voltage Conti.
