ISL9860PF2

600V Stealth Diode

ISL9860PF2 Features

* Soft Recovery . . . . . . . . . . . . . . . . . . . . . . tb / ta > 1.2

* Fast Recovery. . . . . . . . . . . . . . . . . . . . . . . trr < 25ns

* Operating Temperature. . . . . . . . . . . . . . . . . . 150oC Reverse Voltage . . . . . . . . . .

ISL9860PF2 General Description

The ISL9R860PF2 is a Stealthâ„¢ diode optimized for low loss performance in high frequency hard switched applications. The Stealthâ„¢ family exhibits low reverse recovery current (IRRM) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free wheeling.

ISL9860PF2 Datasheet (198.51 KB)

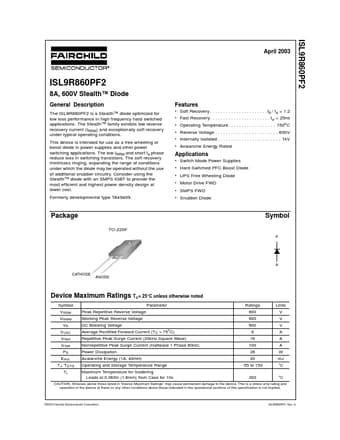

Preview of ISL9860PF2 PDF

Datasheet Details

Part number:

ISL9860PF2

Manufacturer:

Fairchild Semiconductor

File Size:

198.51 KB

Description:

600v stealth diode.
