ISL98607IRTZR5622 Datasheet - Renesas

ISL98607IRTZR5622 High-Efficiency Power Supply

DATASHEET ISL98607IRTZR5622 High-Efficiency Power Supply for Small Size Displays FN8651 Rev.1.00 Jan 9, 2018 The ISL98607IRTZR5622 is a high-efficiency power supply for small size displays, like smart phones, requiring ±supply rails. It integrates a boost regulator, LDO, and inverting charge pump that are used to generate two output rails: +5.5V (default) and -5.5V (default). The output voltages can be adjusted up to ±5.7V with 50mV steps using the I2C interface. The device integrates synchro.

ISL98607IRTZR5622 Features

* Two outputs: - VP = +5.5V (default) - VN = -5.5V (default)

* 2.8V to 4.8V input voltage range

* >85% efficiency with 20mA load between VP and VN

* 21mm2 solution PCB area

* Fully integrated FETs for synchronous rectification

* Integrated compensation

ISL98607IRTZR5622 Datasheet (1.27 MB)

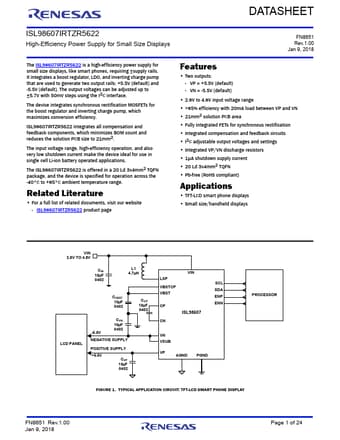

Preview of ISL98607IRTZR5622 PDF
ISL98607IRTZR5622 Datasheet Preview Page 2 ISL98607IRTZR5622 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL98607IRTZR5622

Manufacturer:

Renesas ↗

File Size:

1.27 MB

Description:

High-efficiency power supply.
