ISL98608IIH

High Efficiency Single Inductor Positive/Negative Power Supply

ISL98608IIH Features

* Two outputs: - VP = +5V (default) - VN = -5V (default)

* 2.5V to 5.5V input voltage range

* ±4.5 to ±7V wide output range

* Supports 200mA current between VP and VN

* >89% efficiency with 12mA load between VP and VN

* 18mm2 solution PCB area

ISL98608IIH General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

ISL98608IIH Datasheet (2.59 MB)

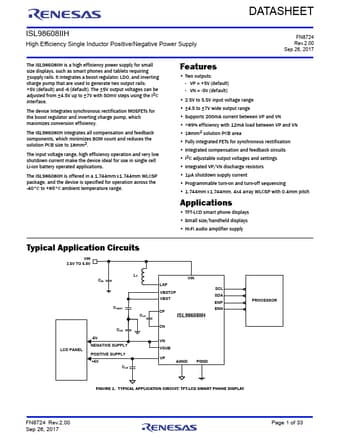

Preview of ISL98608IIH PDF

Datasheet Details

Part number:

ISL98608IIH

Manufacturer:

Renesas ↗

File Size:

2.59 MB

Description:

High efficiency single inductor positive/negative power supply.
DATASHEET ISL98608IIH High Efficiency Single Inductor Positive/Negative Power Supply FN8724 Rev.2.00 Sep 26, 2017 The ISL98608IIH is a high efficie.
