KSC2223 - High Frequency Amplifier

KSC2223 Description

KSC2223 KSC2223 High Frequency Amplifier * * * * Very small size to assure good space factor in Hybrid IC application.

KSC2223 Applications

* fT=600MHz (TYP) at IC=1mA Cob=1pF (TYP) at VCB=6V NF=3dB (TYP) at f=100MHz 3 2 1 SOT-23 1. Base 2. Emitter 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter

📥 Download Datasheet

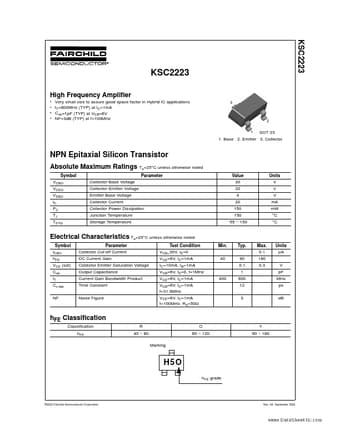

Preview of KSC2223 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSC2223
Manufacturer
Fairchild Semiconductor
File Size
73.70 KB
Datasheet
KSC2223_FairchildSemiconductor.pdf
Description
High Frequency Amplifier
