KSC2688 NPN Epitaxial Silicon Transistor

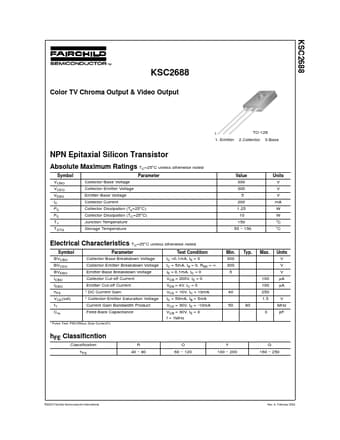

KSC2688 KSC2688 Color TV Chroma Output & Video Output 1 TO-126 2.Collector 3.Base 1. Emitter NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation (Ta=25°C) Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature Value 300 300 5 200 1.25 10 150 - 55 ~ 150 Units V V V mA W W °C °C El.
