KSE13003 Datasheet - Fairchild Semiconductor

KSE13003 NPN Silicon Transistor

KSE13003 NPN Silicon Transistor KSE13003 NPN Silicon Transistor High Voltage Switch Mode Applications High Voltage Capability High Speed Switching Suitable for Switching Regulator and Motor Control March 2008 1 TO-126 1. Emitter 2.Collector 3.Base Absolute Maximum Ratings TC = 25°C unless otherwise noted (notes_1) Symbol Parameter Value VCBO Collector-Base Voltage 700 VCEO Collector-Emitter Voltage 400 VEBO Emitter-Base Voltage 9 IC C.

KSE13003_FairchildSemiconductor.pdf

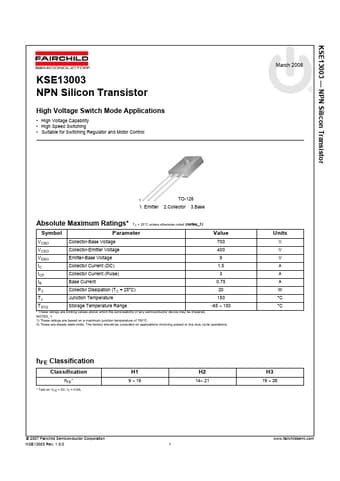

Preview of KSE13003 PDF
KSE13003 Datasheet Preview Page 2 KSE13003 Datasheet Preview Page 3

Datasheet Details

Part number:

KSE13003

Manufacturer:

Fairchild Semiconductor

File Size:

462.63 KB

Description:

Npn silicon transistor.
