KSP06 Datasheet - Fairchild Semiconductor

KSP06 Amplifier Transistor

KSP05/06 KSP05/06 Amplifier Transistor Collector-Emitter Voltage: VCEO = KSP05: 60V KSP06: 80V Collector Dissipation: PC (max)=625mW Complement to KSP55/56 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO Parameter Collector Base Voltage : KSP05 : KSP06 VCEO Collector-Emitter Voltage : KSP05 : KSP06 VEBO IC PC TJ TSTG Emitter-Base Voltage Collector Current Collector Powe.

KSP06_FairchildSemiconductor.pdf

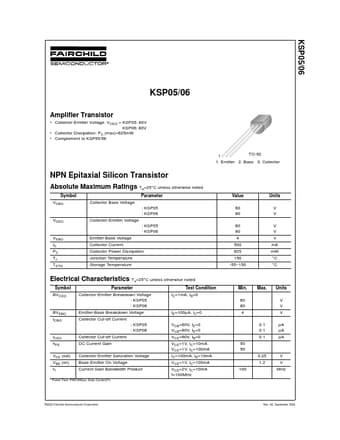

Preview of KSP06 PDF
KSP06 Datasheet Preview Page 2 KSP06 Datasheet Preview Page 3

Datasheet Details

Part number:

KSP06

Manufacturer:

Fairchild Semiconductor

File Size:

35.38 KB

Description:

Amplifier transistor.
